Description

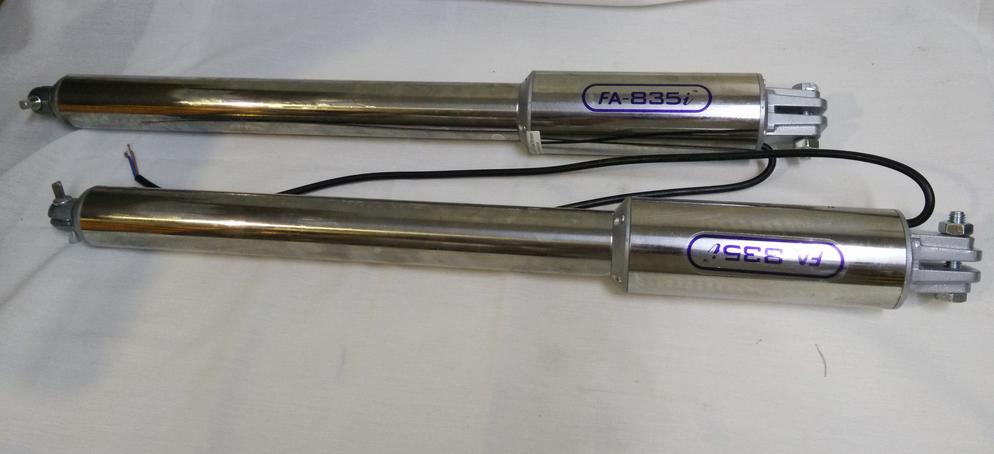

• Driving method : Screw driven piston type
• Operating voltage : DC24V for normal speed
•                                DC12V for cushioning speed
• Max.output power : 80W per driver
• Max.piston stroke : 30cm
• Max.piston speed : 3cm/sec
• Operating cycle : 10 second per 90'(approx)
• Max.weight of gate : 250kg per wing
• Max.length of gate : 2.2 Meter per wing
• Position limit device : Electronic fuzzy logic
• Gearbox : Dual steps planetary reducer
• Safety clutch : Electronic current sensing
• Backup battery : 12V 7AH
• Safety barrier : Infrared beam sensor (optional)
• Main supply : AC110V/220V , 60Hz/50Hz
• Electronic controller : Microcomputer based
• Remote controller : UHF digital PWM type
• Temperature : 0'to +80'c
